Sub-Zero Sealed System & Compressor Diagnosis
When a Sub-Zero built-in stops cooling in Union City, evidence-based sealed-system and compressor diagnosis tells you exactly what failed before anyone spends on the costliest repair.
- $89 call, waived with repair
- 365-day labor warranty
- Genuine OEM parts
The sealed system is the closed refrigerant circuit inside your Sub-Zero: compressor, condenser, evaporator, and the metering and tubing that connect them. It is the most expensive area to repair because it is welded shut, holds pressurized refrigerant, and demands EPA-code recovery. Before quoting it, our Union City bench rules out fans, defrost, airflow, and controls with manifold gauges and electrical readings, so you only pay for sealed-system work when the evidence actually points there.
Most calls that sound like a dead compressor turn out to be something cheaper. A failed evaporator fan, a clogged defrost system, a dirty condenser, or a tripped control board can all mimic a refrigerant problem. We diagnose first and quote second, because the gap between a $340 control board and a $1,400-plus sealed-system repair is too wide to guess at.
We are an independent Sub-Zero specialist serving Union City, 94587, and the wider Tri-City, and sealed-system and compressor faults on built-in 600- and 700-series cooling are the work our bench does day in and day out. You get straight repair-or-replace advice, genuine OEM parts, and a $89 service call that is waived when you book the repair, backed by a 365-day labor warranty.
What the sealed system actually is
A Sub-Zero sealed system is a closed loop that moves heat out of your food compartments. The compressor pressurizes refrigerant vapor and pushes it to the condenser, where it sheds heat and turns to liquid. That liquid passes through a metering device into the evaporator, where it boils, absorbs heat from the cabinet, and returns to the compressor as a cool vapor. The entire circuit is brazed shut and charged to a precise amount, which is why it cannot be opened, topped off, or guessed at like a tire.
Sub-Zero built-ins complicate this with dual evaporators and independent circuits on many 600- and 700-series units, so the fresh-food side and the freezer can fail separately. Knowing which circuit is misbehaving is the first real diagnostic question, and it changes the whole repair path.
- Compressor: the pump that drives the entire refrigerant cycle
- Condenser: sheds absorbed heat, usually behind the upper grille
- Evaporator: where cooling happens inside the cabinet
- Metering and tubing: meters refrigerant flow and carries it around the loop
Why this is the costliest area, and why diagnosis matters
Sealed-system work is expensive for real reasons. The circuit must be recovered, repaired, evacuated under vacuum, and recharged by weight to factory spec, with refrigerant handled to code. A compressor or full sealed-system repair typically runs $1,400 to $3,500 plus parts, which is why no honest shop should quote it from a phone description. Compare that to a control board or sensor at roughly $340 to $1,200, an ice maker or water-line repair at $260 to $820, or a door gasket at $380 to $880, and the cost of a wrong guess becomes obvious.
Evidence-based diagnosis protects your wallet. We use manifold gauge pressures to read what the refrigerant is doing on both the high and low side, and we measure the compressor electrically: winding resistance, the start components, and actual current draw under load. Those numbers either confirm a sealed-system fault or send us back to a cheaper, faster fix. We do not open a sealed system on a hunch.
Signs that point to the sealed system, and signs that don't
Some symptoms genuinely lean toward the refrigerant circuit, but several look identical from the kitchen and are not. The difference is only confirmed with instruments, not by sound or feel.
Patterns that often point toward a sealed-system or compressor issue include a compressor that runs constantly but never pulls temperature down, frost or oily residue on tubing, a unit that hums and clicks but will not start, or one side warming while the other holds. Patterns that usually are NOT sealed-system include heavy frost buildup from a failed defrost, a warm cabinet with a quiet compressor pointing to electrical or control faults, and poor cooling traced to a clogged condenser or a dead evaporator fan. We test each before touching the refrigerant charge.
- Leans sealed-system: long run times with no real cooling, abnormal gauge pressures
- Leans sealed-system: oily film at a joint, a classic sign of a refrigerant leak
- Usually not: thick freezer frost (defrost circuit) or a silent compressor (electrical)
- Usually not: warm cabinet with dirty condenser coils or a stalled evaporator fan
Genuine OEM parts and code-correct procedures
When the diagnosis does point to the sealed system, the repair has to be done right or it fails again. A sealed circuit is unforgiving, so we fit genuine OEM Sub-Zero compressors, driers, and components and follow Sub-Zero service specifications for evacuation, charge weight, and brazing. Refrigerant is recovered and handled to EPA code, never vented. Using factory-grade tools and manufacturer-recommended procedures is what makes the difference between a repair that lasts and a repeat call in three months.
Sealed-system visits often involve recovery, brazing, and a charge by weight, which takes a dedicated trip, and Union City customers in Decoto, Alvarado, Old Alvarado, and up in the Union City hills sit on the same Fremont and Hayward route we already drive, so there is no far-trip surcharge and we can often schedule next-day.
Compressor repair worth it, or time to replace
This is the honest conversation that defines our bench. A sealed-system repair on a Sub-Zero is a serious investment, so we walk through the math with you rather than upsell. We weigh the repair cost against the cabinet's age, condition, and how the rest of the unit is holding up. A 600-series built-in with a strong cabinet, good gaskets, and a single failed component is usually well worth a proper compressor or sealed-system repair, especially given replacement cost and install on a built-in.
When a unit has multiple aging failures, a corroded or compromised evaporator, or damage that makes a sealed repair unreliable, we say so directly and point you toward replacement as the smarter spend. The recommendation is never weighted to sell you a repair or a new unit; you get the straight answer and the numbers behind it, then you decide.
How our Union City technicians diagnose a Sub-Zero sealed system, step by step. This is our professional bench process, not a homeowner DIY guide. Refrigerant and electrical work are handled only by trained techs.
- 1
Verify the complaint and rule out the easy stuff
We confirm the actual symptom, check that the unit has power and correct settings, and inspect the condenser coils, evaporator fan, and defrost system. A surprising share of no-cool calls end right here, with a cheaper fix and no sealed-system work needed.
- 2
Read the electrical side of the compressor
We measure compressor winding resistance, test the start components and overload, and check actual current draw under load. These readings tell us whether the compressor itself is healthy, seized, or failing electrically before we ever touch the refrigerant circuit.
- 3

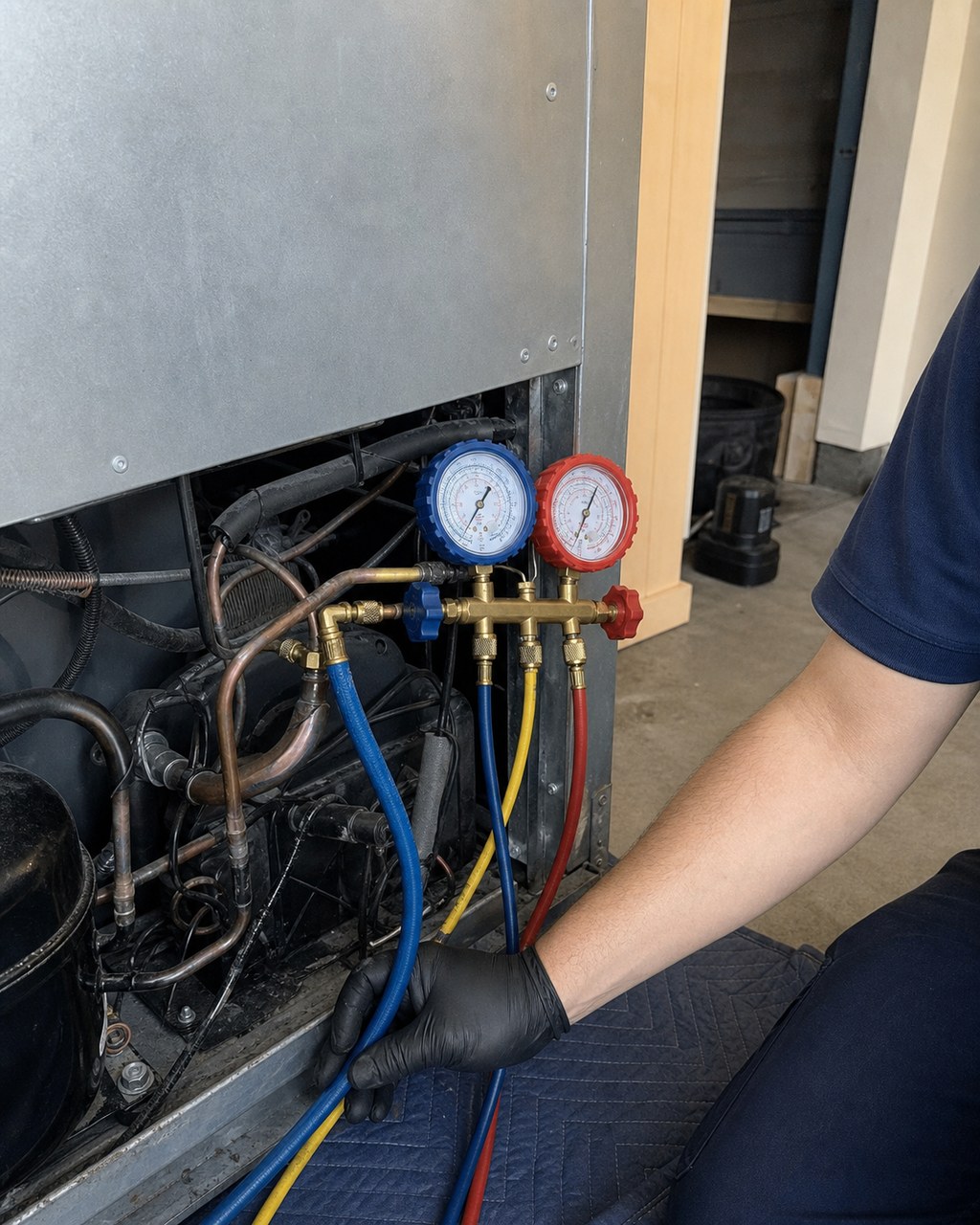

Take manifold gauge pressures
We connect manifold gauges to read high- and low-side pressures and observe how the system behaves running. Abnormal pressures point toward a restriction, a refrigerant leak, an inefficient compressor, or a metering fault, each with a different repair path.
- 4
Locate and confirm any leak or restriction
If pressures indicate a refrigerant leak or blockage, we trace it to the exact joint or component using factory-spec methods, rather than assuming. Pinpointing the fault is what keeps the repair from coming back.
- 5
Lay out repair-or-replace with real numbers
We bring the electrical readings, gauge data, and cabinet condition together, then give you a clear, evidence-based recommendation and an honest quote, so you can decide whether the sealed-system repair is worth it or replacement makes more sense.
- 6
Repair to factory spec with OEM parts
On approval, we recover refrigerant to code, install genuine OEM components, evacuate under vacuum, and recharge by weight to Sub-Zero specification, all backed by our 365-day labor warranty.
| Test | What it shows |
|---|---|
| Manifold gauge pressures | Low/high-side readings reveal leaks, restrictions or a weak compressor |
| Compressor electrical (windings, start parts, current draw) | Confirms a failed or struggling compressor vs a control fault |
| Airflow, fan and defrost check first | Rules out cheaper faults that mimic a sealed-system failure |
| Leak check & evacuation | Locates the leak and ensures a clean, code-correct recharge |
| Temperature pulldown | Verifies the system actually cools to spec after the repair |
What it costs
Transparent Sub-Zero repair pricing
Honest draft ranges so you can plan. The $89 diagnostic is waived when you book the repair.
| Service | Draft range | Typical time | Notes |
|---|---|---|---|
| Diagnostic service call | $89 | 45–90 min | Model, temperatures, airflow and a full visual check — waived when you book the repair. |
| Door gasket / frost-line fix | $380–$880 | 1–3 hrs | Depends on model and gasket availability. |
| Ice maker / water line | $260–$820 | 1–3 hrs | Fill valve, fill tube or ice module. |
| Control board / sensor | $340–$1,200 | 1–4 hrs | Quoted only after electrical proof. |
| Compressor / sealed system | $1,400–$3,500 | 2–6 hrs + parts | Requires pressure and electrical evidence first. |
Draft ranges for planning; your final quote depends on model, parts, access and diagnosis. On older units we'll tell you honestly when replacement makes more sense than repair.
Reviews
What Union City homeowners say
They put gauges on the sealed system and showed me the actual pressures. On our newer 36-inch it was clearly worth repairing, and they proved it instead of guessing.
Wine unit compressor was running hot. They took real readings before quoting anything and gave an honest sealed-system call. Genuine parts and a year on the labor.
My 20-year-old 642 was losing cooling. Instead of selling me a $2k+ sealed-system job, they showed me the numbers and said it was time to replace it. That kind of honesty is rare.
FAQ
Frequently asked questions
What is the sealed system on a Sub-Zero?
The sealed system is the refrigeration core — compressor, condenser, evaporator and the refrigerant circuit that connects them. When it leaks or the compressor weakens, cooling drops even though fans and controls look fine. It is the most expensive area to repair, which is exactly why we prove the fault before quoting.
How do you diagnose a sealed-system or compressor fault?
With evidence, not assumptions. We take pressure readings with a manifold gauge set, check compressor electrical values (windings, start components, current draw), and verify there is no airflow, fan or defrost issue masquerading as a sealed-system failure. Only when the data confirms it do we quote the repair.
How much does Sub-Zero sealed-system repair cost?
Compressor and sealed-system work generally runs $1,400–$3,500 plus parts, depending on the model and the specific failure. The $89 diagnostic is waived if you proceed, and the work is backed by our 365-day labor warranty. We will also be candid if replacement is the better value.
Is a compressor repair worth it?
On newer and mid-life built-ins, usually yes — the cabinet and the rest of the unit are sound, so restoring the sealed system is far cheaper than a new built-in. On units near 20 years with other wear, we will show you the numbers and let you decide; sometimes replacement wins.
Do you use genuine parts and follow refrigerant rules?
Yes. We install factory-certified, genuine OEM Sub-Zero components, run factory-spec diagnostics, and follow Sub-Zero service specifications and manufacturer-recommended procedures. Refrigerant is recovered and recharged by weight to code, never topped off by guesswork. Sealed-system work is precise — proper evacuation, a deep vacuum to remove moisture, and an accurate charge are what make the repair hold and last.
Is a refrigerant leak repairable, or does the unit need replacing?
Many leaks are repairable. Once we locate it with gauges and a proper leak check, we can braze the joint, evacuate the system and recharge by weight to spec. Whether it is worth doing depends on the unit’s age and overall condition — we will tell you honestly when replacement is the smarter spend.
